Heavy-Duty Sheet Metal
Fabrication & Forming Solutions
Accelerate your custom component manufacturing with HYG TECH intelligent metal forming cells. Achieve high-repeatability CNC bending, automated hydraulic press brake operations, and flexible multi-axis robotic bending with zero angle deviation.
The Ultimate 3-Step Precision Sheet Metal Fabrication Workflow
Optimize your metal forming workflow and conquer tight dimensional tolerances. Our robust sheet metal fabrication solutions seamlessly combine high-speed multi-station CNC punching, smart angle-compensated bending, and automated robotic bending cells for relentless, high-volume production.

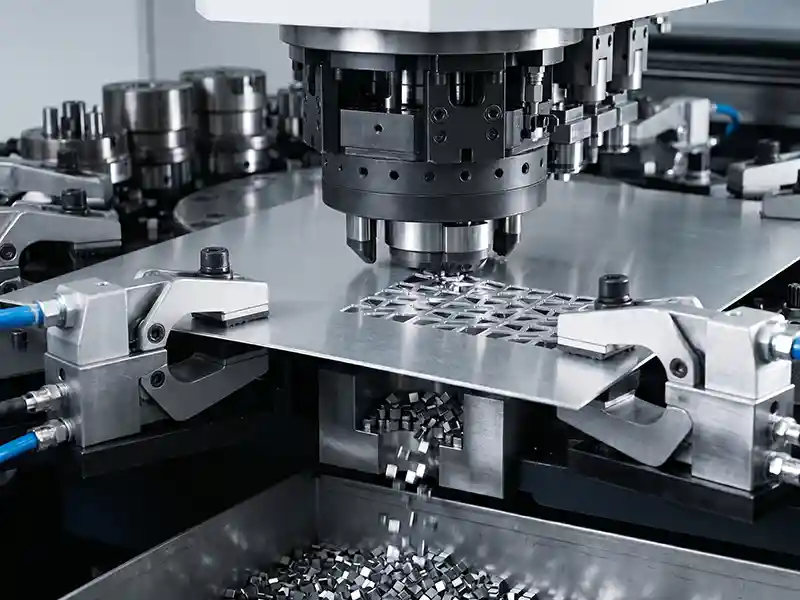

Heavy-duty multi-station CNC turret punch press executing ultra-fast perforation and precise geometry nibbling under rigid structural stability.
1. High-Speed Multi-Station CNC Punching
- ✔ Rigid O-Frame Architecture: Heavy-duty, stress-relieved steel frames ensure absolute structural stability during high-tonnage perforation.
- ✔ Thick-Turret Tooling System: Multi-station auto-index configurations allow rapid, smooth tooling selection to execute complex geometry nibbling.
- ✔ Pneumatic Clamping Protection: Dynamic high-grip clamps protect sheet surfaces while feeding materials at high acceleration rates.
2. Precision CNC Synchro Press Brake Bending
- ✔ Real-Time Crowning Compensation: Automated hydraulic/mechanical deflection compensation guarantees perfectly straight bending angles across full bed width.
- ✔ Multi-Axis Servo Backgauge: High-precision X, R, Z1, Z2 backgauge axes position the sheet metal instantly for multi-step progressive bending.
- ✔ Pristine Surface Bending: Specialized non-marking dies eliminate structural indentations on delicate aluminum and stainless steel parts.
Intelligent CNC synchro press brake utilizing real-time deflection compensation to achieve perfectly straight, multi-step progressive bending.

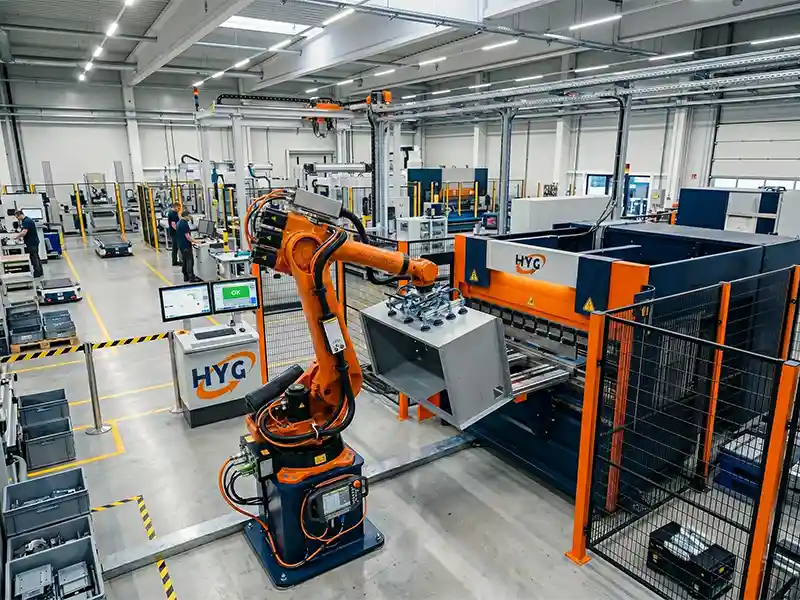

Automated robotic arm synchronized with a flexible panel bender, executing rapid multi-sided folding for unattended Industry 4.0 production.
3. Intelligent Robotic Flexible Bending Cells
- ✔ Fully Unattended Operation: Multi-axis robotic arms synchronized with servo bending centers handle complex, multi-sided panel folding with zero manual intervention.
- ✔ 10s Rapid Multi-Sided Folding: Universal bending blades fold upward and downward sequentially, completed within seconds per bend.
- ✔ Seamless Production Flow: Directly links with punching or laser cutting stations to form an integrated, high-capacity Industry 4.0 production line.
Proven Success: Automated Sheet Metal Forming Cells in Action
Discover how we integrated a high-performance flexible sheet metal fabrication cell for a top-tier industrial enclosure manufacturer. Below is the technical engineering blueprint and the actual deployed factory line.

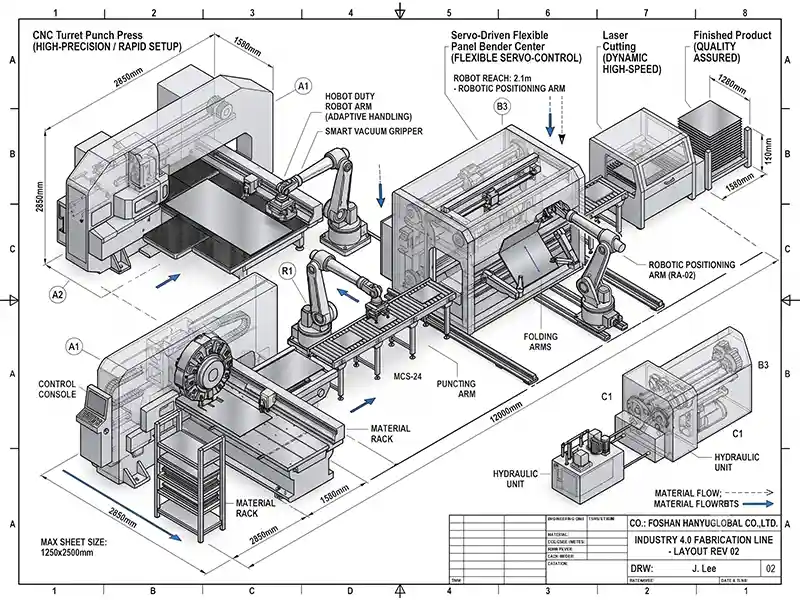

Technical CAD layout blueprint of a fully integrated CNC turret punching and robotic arm bending production line.
Phase 1: Automated Bending Layout
- ✔ Heavy Line Integration: Synchronized nesting layout connecting high-speed turret punches to multi-axis bending centers.
- ✔ Robotic Material Handlers: Heavy-duty robotic arms equipped with intelligent vacuum grippers tilt and rotate metal sheets flawlessly.
- ✔ Integrated CAD/CAM Sync: Intelligent folding software automatically calculates precise unfolded lengths and optimal 3D bending sequences.
- ✔ Anti-Scratch Conveyance: Soft-touch motorized transfer tables eliminate friction abrasions on aesthetic cabinet panels.

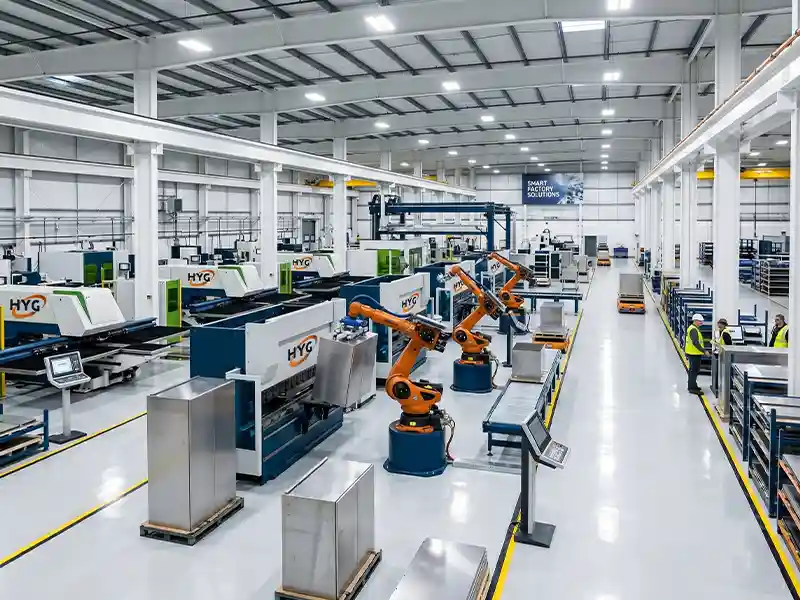

Advanced robotic sheet metal bending cell in active production, flawlessly forming 2,200+ industrial enclosure panels daily.
Phase 2: High-Repeatability & Continuous ROI
- ✔ High-Volume Precision: Continuous 24/7 robotic bending operations, outputting 2,200+ flawless cabinet parts daily.
- ✔ Drastic Labor Reduction: 1 centralized line operator manages the entire process, replacing 6 manual press brake operators.
- ✔ Closed-Loop Laser Inspection: Real-time angle sensors measure and correct springback variants automatically within ±0.5°.
- ✔ Rapid Capital Amortization: Elimination of manual rework and setup times slashes scrap rates down to 0.5%, reaching full ROI within 14 months.
Upgrade to a Digital Factory with Confidence
Your Vision. Engineered by Experts.
At Hanyu Global Co., Ltd., based in the heart of China’s industrial machinery hub in Foshan, we do not just sell standalone equipment. We build production capacity. Backed by a dedicated workforce of over 100 skilled manufacturing specialists and an elite team of 10 senior mechanical and software engineers, we analyze your factory’s footprint to map out a perfectly synchronized automated production ecosystem. From automated roller conveyors to IoT-connected machinery, we ensure your investment yields maximum throughput with minimal labor dependencies.
Unlock Your Turnkey Blueprint: Discover actionable factory layouts and IoT integration strategies designed to maximize your production throughput.
Tell Us Your Factory Dimensions. We Design the Rest.
🔒 Confidentiality Guaranteed: All CAD drawings and production data are fully protected under non-disclosure standards and used strictly for engineering layout simulation.
