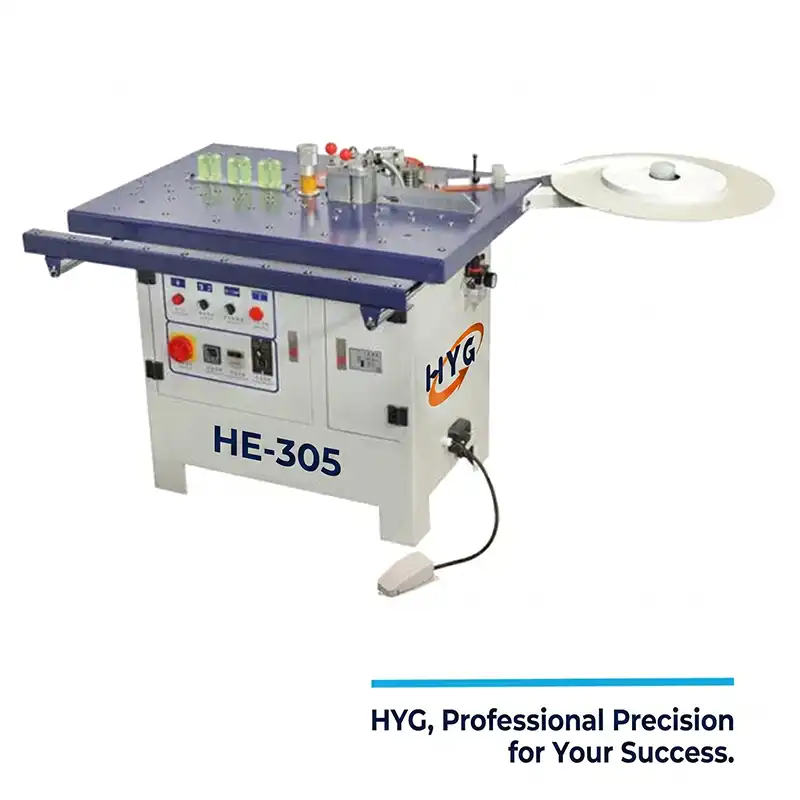

HE-305 standard manual edge banding machine for flexible straight edge application in compact woodworking shops.

HE-305 Standard Manual Edge Banding Machine

  • 25mm Min. Inner-Radius Flexibility
    Excels at sealing complex, round, and free-form panel shapes with tight radius precision.
  • Rapid Dual-Heating Glue Tank
    Significantly cuts warm-up times and ensures stable, industrial-grade adhesive melting.
  • Heavy-Duty Steel Body Stability
    Engineered to minimize vibration, delivering long-term accuracy for professional cabinet making.
  • Low-Budget Industrial Workhorse
    A highly cost-effective solution tailored to maximize ROI for custom furniture workshops.
  • Multi-Material Tape Compatibility
    Flawlessly applies PVC, ABS, melamine, or natural wood veneer onto any panel edge.
CE Certified
12-Month Warranty
Free Remote Setup

Categories: ,
Share your love

Versatile Edge Processing for Straight and Contoured Panels

In the competitive landscape of furniture manufacturing, flexibility is key. The HE-305 is specifically engineered to handle the challenges that fully automatic machines cannot—namely, the intricate curves and irregular shapes of custom cabinetry. It is the ideal workhorse for workshops requiring precision sealing on a budget without sacrificing industrial build quality.

Core Engineering & Technical Advantages

Advanced Dual-Pipe Heating System

Efficiency starts with temperature control. The HE-305 is equipped with two high-efficiency heating pipes within the glue tank. This configuration allows the adhesive to reach working temperature rapidly, significantly reducing downtime and ensuring a consistent bond across various materials, including PVC, ABS, and natural veneers.

Industrial Structural Integrity

  • Heavy-Duty Machine Body: Constructed from thick, reinforced steel to eliminate vibration and ensure 100% accuracy during manual feeding.
  • Advanced Glue Box Structure: The glue box is strategically positioned lower than the worktable. This design optimization prevents glue overflow and provides a more stable center of gravity for the machine.
  • Precision Curvature Handling: Capable of a minimum inner-radius of 25 mm (1″), allowing for seamless banding on free-shaped edges.

FAQ

What makes the HE-305 suitable for smart factory integration?

As a foundational “Standard” model, the HE-305 serves as the critical manual backup or specialized curve-processing station in a modern digital factory. Its reliability ensures that custom, non-linear orders do not bottleneck the main production line.

Is the worktable customizable for specific project needs?

Yes. The HE-305 features a large, precision-ground worktable as standard, which can be further customized by HYG engineers to accommodate oversized panels or specific workshop layouts.

HE-305 Core Engineering & Features

Heavy-duty pneumatic guillotine shearing unit on the HE-305 manual edge bander, showing the high-rigidity cutting blade slicing thick PVC tape.
High-Tonnage Pre-Cutting: Robust pneumatic guillotine shears up to 3mm thick PVC and veneer tapes instantly with a clean, vertical stroke.

MANUAL CUT-OFF CONTROL

Heavy-Duty Pneumatic Guillotine Shearing Unit for Manual Edge Banders

Engineered with a reinforced pneumatic cylinder and an ergonomic mechanical linkage, this premium manual-station unit delivers an instantaneous, clean chop of the tape via a micro-switch or foot pedal. For your custom furniture shop, this robust cutting configuration replaces tiring manual knife-slashing, ensuring a perfectly straight, splinter-free cutoff on thick PVC or veneer edges with minimal operator fatigue.

  • ✔️ Instant Foot-Pedal / Micro-Switch Cut
  • ✔️ Heavy-Duty 3mm PVC Shearing Capacity

MANUAL WORKBENCH CONFIGURATION

Ergonomic Multi-Roller Guidance & Heavy-Duty Pressure Station

Featuring an array of premium non-marring guide rollers alongside a steel-reinforced main pressure unit, this table-top configuration provides rock-solid stabilizing support as you manually guide irregular wood panels. For your custom fabrication shop, this smooth, drag-free feed control guarantees flawless veneer alignment and uniform glue distribution on complex curves without scuffing delicate board surfaces.

  • ✔️ Non-Marring Smooth Feed Guidance
  • ✔️ Uniform Pressure on Complex Curves

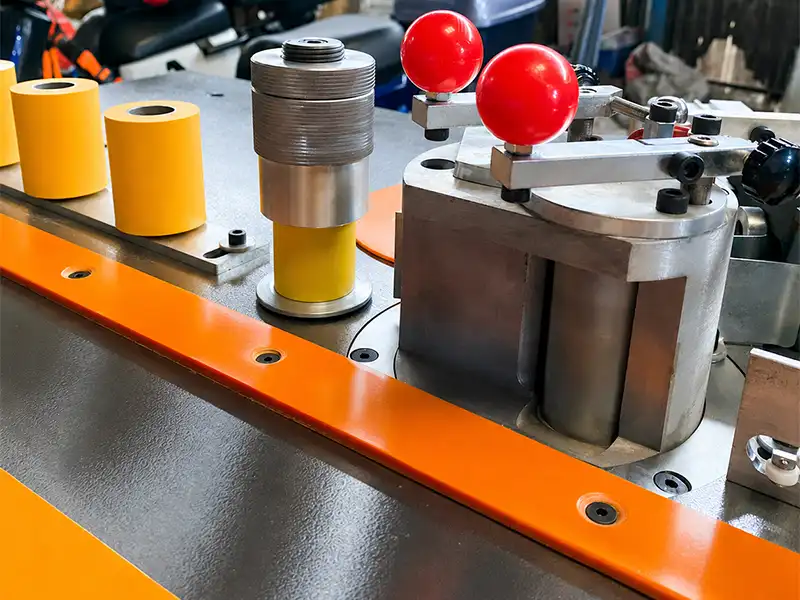

Ergonomic multi-roller panel guidance and heavy-duty manual pressure station on the HE-305 edge bander for stable workpiece feeding.
Fatigue-Free Feeding: Multi-roller guidance and adjustable heavy-duty pressure rollers ensure stable panel control and tight edge bonding.

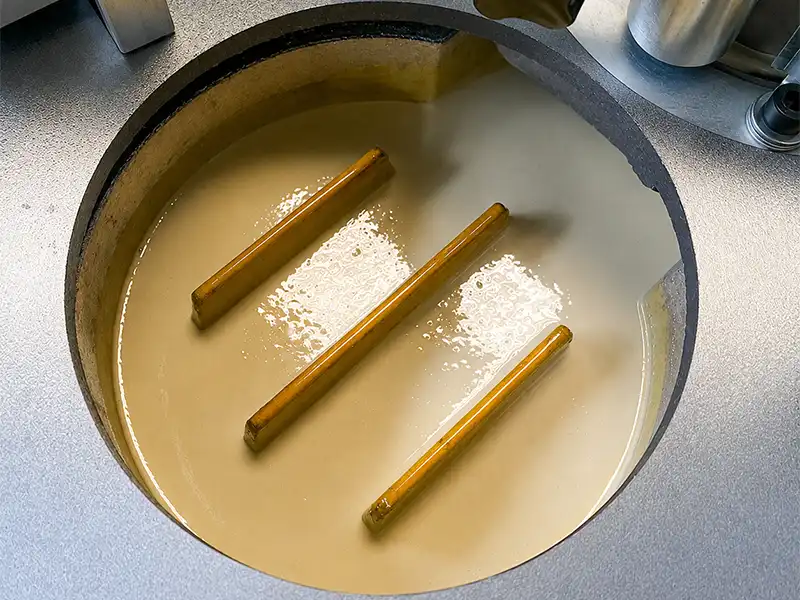

Internal view of the HE-305 manual edge bander high-capacity melting pot showing the non-stick coating and internal multi-heating ribs for rapid adhesive melting.
Rapid Thermal Response: High-capacity glue pot features internal multi-heating ribs and a non-stick coating for fast heat-up and char-free adhesive melting.

THERMAL GLUING EFFICIENCY

High-Capacity Melting Pot with Non-Stick Multi-Heating Ribs

Engineered with a heavy-duty Teflon-coated reservoir and an integrated triple-rib conduction heating design, this melting pot delivers incredibly rapid and uniform thermal distribution. For your custom woodwork facility, this advanced heating configuration completely prevents local hot-spots and adhesive carbonization, ensuring a perfectly fluid, golden glue consistency that guarantees unyielding bond strength across all edge types.

  • ✔️ Non-Stick Teflon Coated Pot
  • ✔️ Carbonization-Free Even Heat

Technical Specifications & Parameters

Technical ParameterData
Model NumberHE-305
Edge Thickness0.4 – 3 mm
Edge Height10 – 60 mm
Power Output2.45 kw
Operational Pressure0.6 Mpa
Machine Dimensions1010 * 1060 * 1000 mm
Net Weight160 kg
Input Voltage220V – 380V (Optional)
